Product coolers are used for cooling of liquids, typically, for the cooling of distillates from the distillation columns.
Unlike coil condensers, in product coolers, product travels through the coil battery and coolant through shell. This provides more resident time to the product to be cooled. For direct connection with distillate lines, all the product coolers are provided with 25 DN connections.

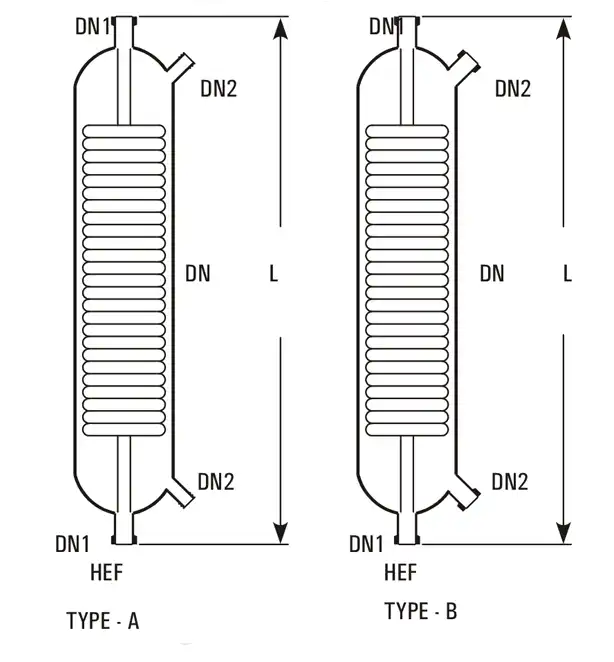

| CAT. REF. | DN | DN1 | DN2 | L | Actual HTA m2 |
TYPE |
|---|---|---|---|---|---|---|
| HEF1/1* | 50 | 25 | 12 | 450 | 0.1 | A |
| HEF1/2* | 50 | 25 | 12 | 600 | 0.2 | A |
| HEF1/3.5* | 80 | 25 | 16 | 600 | 0.35 | A |
| HEF1/5* | 100 | 25 | 19 | 600 | 0.5 | A |
| HEF1/10 | 150 | 25 | 25 | 600 | 0.7 | B |
| HEF1/15 | 150 | 25 | 25 | 850 | 1.25 | B |
