Angled Hose Connector Assemblies

Angled Hose Connector Assemblies

Goel Glass provides precision-engineered Metal and Plastic Angled Hose Connector Assemblies designed to establish safe, reliable, and leak-tight connections between flexible utility hoses and borosilicate glass process equipment. Primarily deployed on glass coil condensers, shell-and-tube heat exchangers, and jacketed reactor utility nozzles, these assemblies facilitate the smooth circulation of cooling water, chilled brine, thermic fluids, and drain lines.

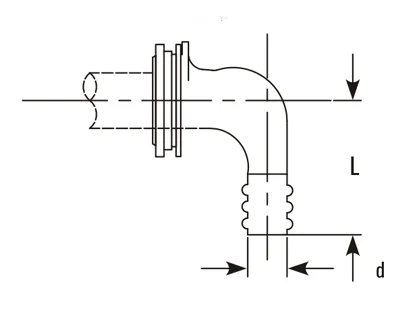

A key operational hazard when connecting heavy, pressurized, or vibrating flexible utility hoses to glass apparatus is the transmission of bending moments and shear stresses directly onto fragile glass side nozzles. The 90-degree angular configuration of Goel Glass hose connectors efficiently redirects hose routing parallel to vessel and column walls. This right-angle design eliminates cantilever loads, prevents accidental hose pinching, and protects delicate glass nozzles from mechanical damage during operation and thermal cycling.

Each angled hose connector assembly is supplied as a complete, ready-to-mount installation kit comprising a robust 90° angled hose nozzle, a precision mating backing flange, a chemical-resistant elastomeric sealing gasket, and high-tensile stainless steel nuts and bolts. Manufactured from corrosion-resistant engineering polymers or high-grade alloys, these assemblies deliver dependable service across broad thermal and chemical environments.
