Packing Supports

Packing Supports

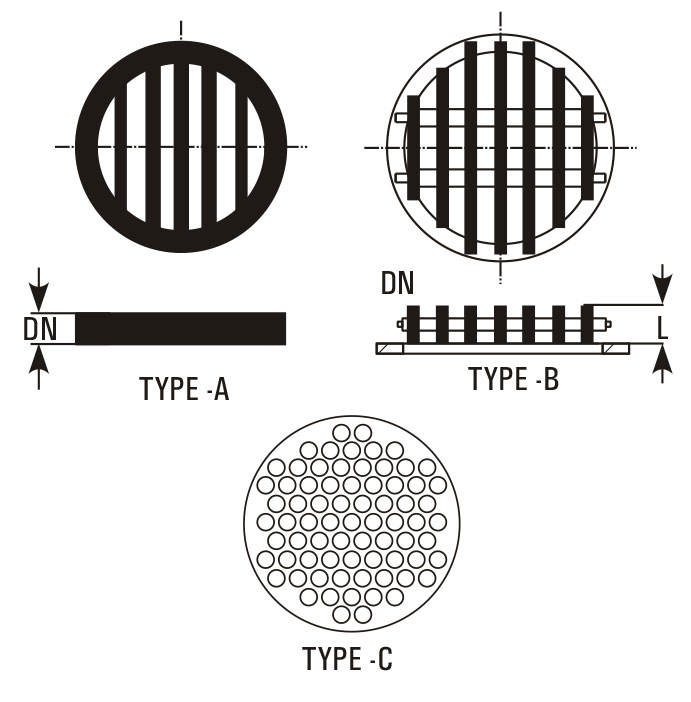

Packing supports Type A are made of fused glass rods. Packing supports Type B (heavy duty) are made of PTFE Blocks with holes.

Best, Top, We serve Long Lasting, Packing Supports, Raschig Rings Wholesalers, Manufacturers, Packing Supports Min Canada, in the USA, in North America, Goel Scientific Glass Canada Ontario Alberta BC Quebec
CAT. REF. DN L CROSS SECTION AREA MAX. LOAD KGS. MINIMUM PACKING SIZE TYPE
CP3* 80 10 45% 10 12 A
CP4* 100 12 50% 15 15 A
CP6* 150 15 55% 30 25 A
CP9* 225 19 60% 50 25 A
CP12* 300 19 65% 75 25 A
HD16 400 70 70% 150 25 B
HD18 450 70 70% 200 25 B
HD24 600 95 70% 300 40 B
HDP16 400 45-50 57% 100 25 C
HDP18 450 45-50 54% 100 25 C
HDP24 600 45-50 58% 150 40 C

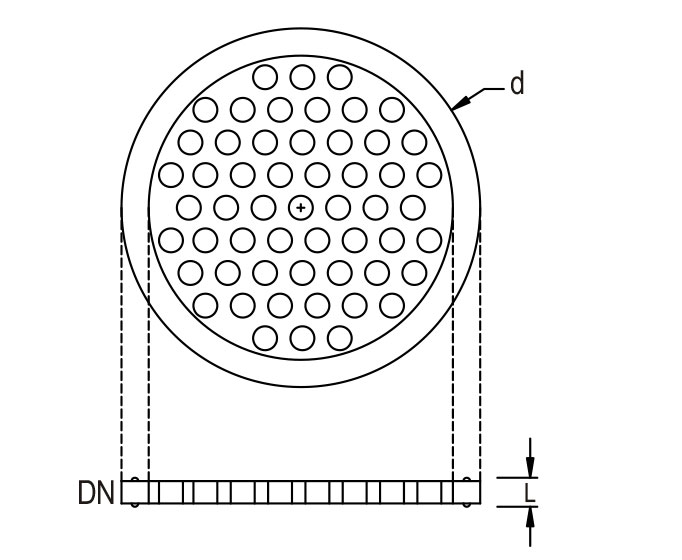

PTFE Perforated Plates

These are used as packing retainers to prevent the packing from lifting due to vapour velocity. These can be clamped between two components without using any gasket.

Best, Top, We serve Long Lasting, Packing Supports, Raschig Rings Wholesalers, Manufacturers, Packing Supports Min Canada, in the USA, in North America, Goel Scientific Glass Canada Ontario Alberta BC Quebec
CAT. REF. DN d L
TCP3 80 99 7
TCP4 100 132 9
TCP6 150 184 10
TCP9 225 254 12
TCP12 300 340 16
TCP16 400 463 25
TCP18 450 525 25
TCP24 600 689 30

Packings require for various pipe sections (Kgs.)

Pipe Section L FC FC 12 FC 15 FC 25 FCB 40 FCB 50
PS3/1000 5 3 3 2 - - -
PS4/1000 8 - 4 3 3 - -
PS6/1000 18 - 9 7 7 - -
PS9/1000 37 - - 15 15 15 -
PS12/1000 66 - - 17 30 25 -
PS16/1000 125 - - - 65 50 53
PS18/1000 165 - - - 90 65 70
PS24/1000 295 - - - - 115 125

Notes of use of Column Packing

  • Due to their low bulk densities, Glass Raschig rings are particularly suitable for packing glass columns.
  • Generally, the ratio of Column diameter to packing diameter should not be less than 8:1 .
  • When using smaller packing size, a small layer of larger packing should be used on packing support, to prevent the smaller packing falling through.
  • In vacuum application and applications involving high vapour velocities, packing may be lifted and may damage to other parts. To prevent this, a packing retainer (PTFE perforated plates) should be used above the packed section.

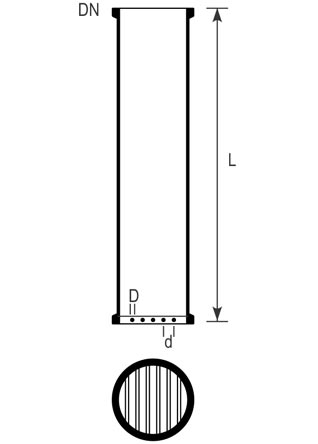

Column Section With Inbuilt Packing Support

  • Ease in installation being a single piece instead of two pieces.
  • There is no need to maintain stock of CS and packing support.
  • Increases effective packed height which results in to increase in efficiency.
  • Zero maintenance against column flooding.
Best, Top, We serve Long Lasting, Packing Supports, Raschig Rings Wholesalers, Manufacturers, Packing Supports Min Canada, in the USA, in North America, Goel Scientific Glass Canada Ontario Alberta BC Quebec
Cat.Ref. DN D d L Max
Load
Kgs		 Suitable
Packing
Size
CSP3/1000 80 10 10 1000 20 12
CSP4/1000* 100 10 14 1000 30 15
CS6P/1000* 150 12 22 1000 60 25
CSP9P/1000* 225 12 22 1000 90 25
CSP12/1000* 300 12 22 1000 150 25
