Borosilicate Glass Raschig Rings
Goel Glass manufactures high-purity Borosilicate Glass 3.3 Raschig Rings specifically engineered as random packings for industrial and pilot distillation columns, fractionation towers, and absorption scrubbers. With nominal diameters ranging from 8 mm to 50 mm, these cylindrical glass packings provide an optimized balance between geometric surface area, high void fraction, and low bulk density.
Unlike metallic or ceramic packings that can corrode, scale, or introduce trace impurities into pure distillates, Borosilicate 3.3 Raschig rings offer complete chemical inertness across virtually all acidic and organic reaction media. Their low bulk density reduces mechanical loads on packing support plates, while smooth, fire-polished surfaces minimize liquid hold-up and hydraulic pressure drop across the packed bed.
| CAT. REF. | SIZE | BULK DENSITY KG/LTR | SPECIFIC SURFACE M2/M3 |
|---|---|---|---|
| FC8 | 8x8 | 0.66 | 633 |
| FCB10 | 10x10 | 0.52 | 487 |
| FCB12 | 12×12 | 0.48 | 425 |
| FCB15 | 15×15 | 0.43 | 330 |
| FCB20 | 20x20 | 0.30 | 300 |
| FCB25 | 25x25 | 0.28 | 240 |
| FCB30 | 30x30 | 0.27 | 180 |
| FCB40 | 40×40 | 0.22 | 160 |
| FCB50 | 50×50 | 0.19 | 120 |

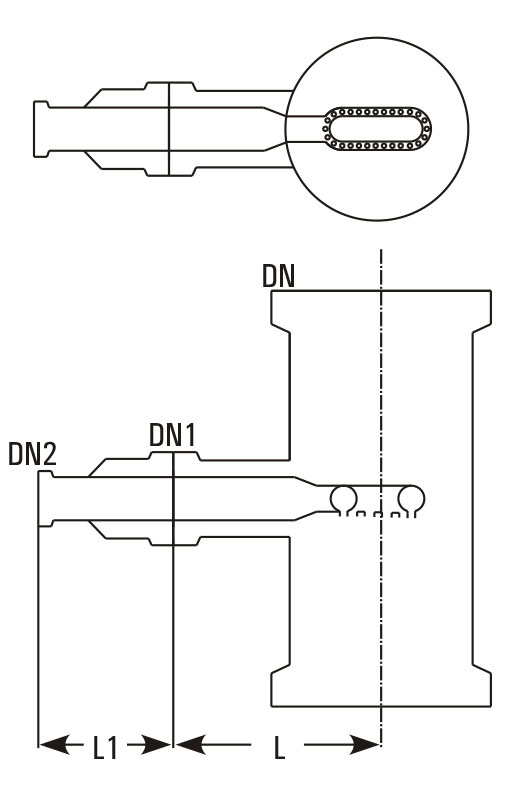

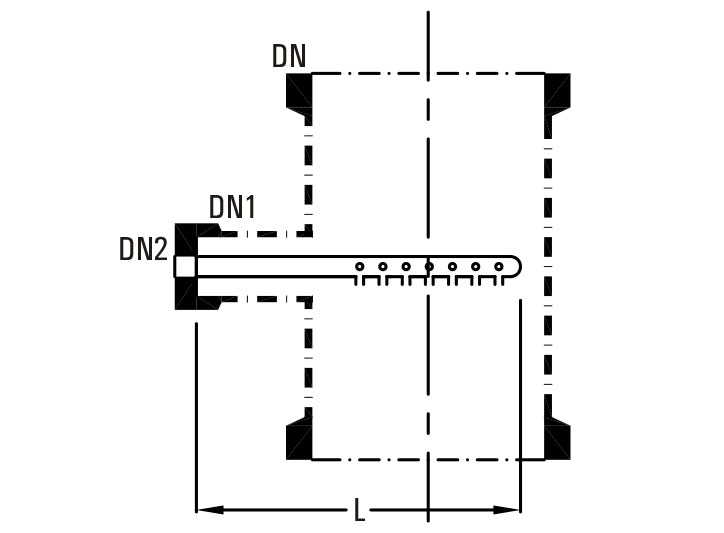

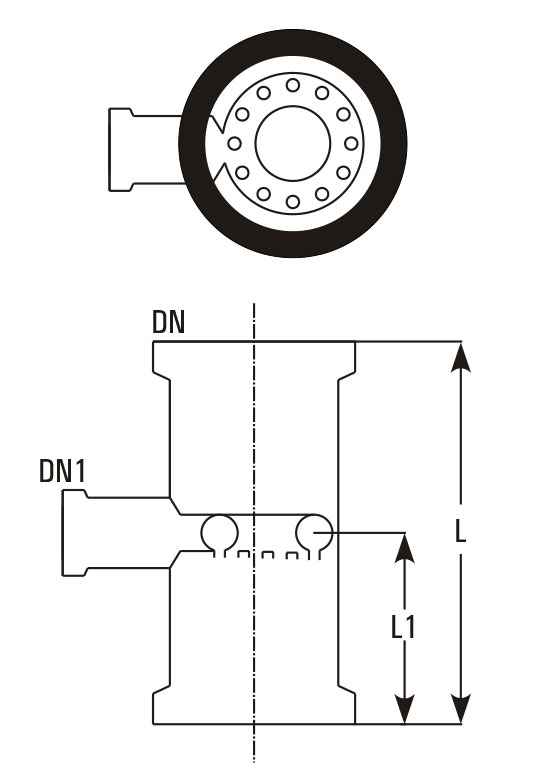

Borosilicate Glass Spray Feed Pipes
To ensure optimal mass transfer efficiency across a packed column, liquid feed or reflux must be distributed evenly across the upper cross-section of the packing bed. Goel Glass manufactures Borosilicate Glass Spray Feed Pipes engineered with an oval distributor tube with calibrated discharge orifices precision-drilled along the bottom.
These spray feed pipes are installed through standardized unequal tees (PTU type) positioned directly above the column packing. The downward-facing orifice pattern creates a uniform liquid spray pattern, preventing liquid channeling along the column walls and ensuring thorough wetting of Raschig rings for maximum theoretical stage performance.
| Cat.Ref. | DN | DN1 | DN2 | L | L2 | Holes Size | Tee Suitable |
|---|---|---|---|---|---|---|---|
| FD6 | 150 | 80 | 25 | 225 | 125 | 27x2mm | PTU6/3 |
| FD9 | 225 | 100 | 25 | 325 | 150 | 27x2mm | PTU9/4 |
| FD12 | 300 | 150 | 25 | 400 | 200 | 30x3mm | PTU12/6 |
Note: DN refers to the nominal diameter of the column.
Key Design Features
- High Chemical Durability: Fabricated from Type 3.3 Borosilicate glass, resistant to almost all acids, solvents, and corrosive vapors without leaching or fouling.
- Optimized Mass Transfer: High specific surface area (up to 633 m²/m³) promotes vigorous vapor-liquid contact while preserving large void fractions to avoid premature flooding.
- Low Pressure Drop: Uniform geometry and fire-polished edges ensure low resistance to counter-current vapor flow under atmospheric and vacuum operation.
- Anti-Channeling Liquid Distribution: Spray feed pipes distribute incoming liquid uniformly across the packed bed cross-section, maximizing packing utilization.
- Full Process Visibility: Transparency allows immediate visual diagnosis of packing wetting, liquid pooling, and foaming conditions.
Industrial Applications
Goel Glass Raschig rings and spray feed pipes are widely utilized in fractionation towers, gas scrubbing columns, absorption systems, solvent recovery units, and reactive distillation pilot plants across the chemical, pharmaceutical, petrochemical, and environmental sectors in North America.
