Industrial Borosilicate Simple Distillation Units

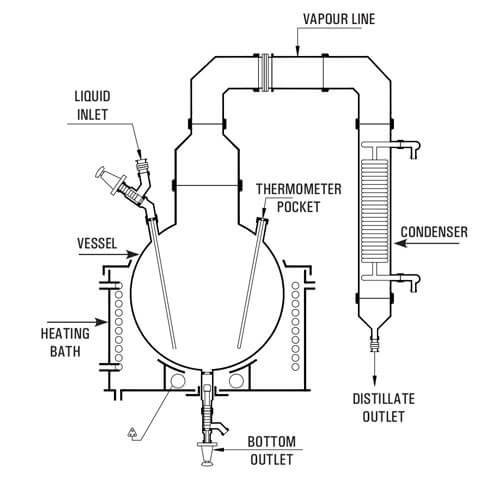

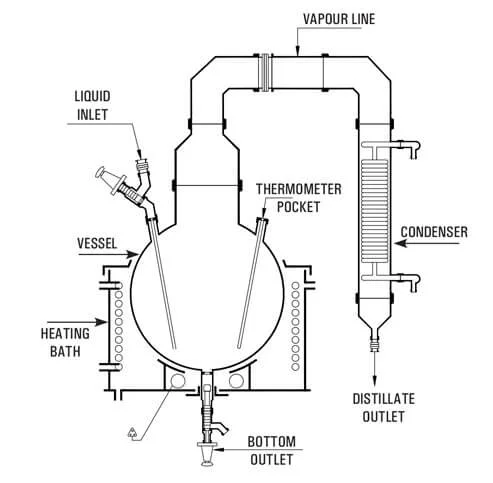

Goel Glass manufactures turnkey Simple Distillation Units engineered for high-efficiency batch evaporation, solvent stripping, and thermal concentration in pilot plants, laboratory scale-up facilities, and production facilities. Each unit integrates a spherical or cylindrical Borosilicate 3.3 boiling vessel securely seated in an insulated electric heating bath, coupled with a high-capacity vapor pipe line and a borosilicate coil condenser.
Process vapors rise smoothly through oversized glass vapor headers into the coil condenser where efficient condensation occurs under controlled thermal regimes. The liquid condensate is collected in a graduated receiver flask equipped with a PTFE bottom drain valve and vacuum balancing lines, enabling continuous liquid withdrawal without interrupting vacuum levels. Units are engineered for operation under atmospheric pressure as well as full vacuum conditions down to 1 mbar.
| Unit Cat.Ref. | Reactor Capacity | BATH KW | VAPOUR LINE | CONDENSER M2 |
|---|---|---|---|---|
| SDU20 | 20 L | 4.0 | 80 DN | 0.35 |
| SDU50 | 50 L | 6.0 | 100 DN | 0.50 |
| SDU100 | 100 L | 9.0 | 150 DN | 1.50 |
Key Features
- Complete Corrosion Resistance: All wetted parts fabricated from chemical-grade Borosilicate glass and pure virgin PTFE.
- Full Vacuum Capability: Certified for deep vacuum distillation down to -1 bar, allowing gentle separation of heat-sensitive compounds.
- High Heat Transfer Efficiency: Matched electric heating bath with digital temperature controllers and high-performance coil condensers.
- Modular Frame Structure: Mounted on robust stainless steel or epoxy-coated tubular skid frameworks for easy laboratory or pilot plant placement.
Applications
Widely utilized in solvent recovery, pharmaceutical intermediate concentration, botanical and essential oil processing, petrochemical testing, and high-purity chemical refining throughout Canada and the United States.
