Combined Reaction Distillation Units
Goel Glass designs and fabricates modular Reaction Distillation Units that combine the synthesis capabilities of a stirred reactor with the fractionation precision of an overhead packed distillation column. This versatile dual-purpose configuration enables chemists and process engineers to synthesize reaction intermediates and continuously drive reversible equilibrium reactions forward by simultaneously stripping out by-products or lower-boiling condensates.

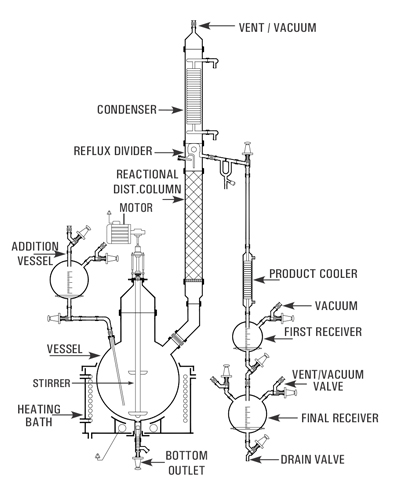

Built entirely from thermal shock resistant Borosilicate 3.3 and virgin PTFE wetted seals, the unit features an agitated reaction vessel, an overhead packed column section with high-efficiency raschig packing, an electromagnetic reflux divider with digital cycle control, and a primary condenser coupled with an auxiliary sub-cooler. The system delivers complete operational flexibility, transitioning seamlessly between simple reflux reaction, vacuum fractional distillation, or simultaneous reactive distillation.
| Unit Cat.Ref. | Reactor Capacity | BATH KW | ADDITION VESSEL | VAPOUR LINE | CONDENSER HTA M2 | COOLER HTA M2 | RECEIVER SIZE |
|---|---|---|---|---|---|---|---|
| FRU20 | 20 L | 4.0 | 2L | 80 DN | 0.35 | 0.10 | 2L, 5L |
| FRU50 | 50 L | 6.0 | 5L | 100 DN | 0.50 | 0.20 | 5L, 10L |
| FRU100 | 100 L | 9.0 | 10L | 150 DN | 1.50 | 0.35 | 10L, 20L |
Key Engineering Features
- Multi-Function Hybrid Design: Functions independently as a batch reactor, fractionator, or coupled reactive distillation unit.
- Integrated Fractionating Column: Packed glass column section provides high separation efficiency for overhead cuts.
- Zero Contamination Guarantee: Only high-purity Borosilicate 3.3 and virgin PTFE contact reaction mixtures and vapors.
- Complete Process Visibility: Unrestricted visual observation of foaming, phase change, reaction kinetics, and reflux dynamics.
Industrial Applications
- Equilibrium Reactions: Esterification and acetalization with continuous azeotropic water removal.
- Solvent Exchange & Stripping: Reaction solvent removal followed by immediate product purification.
- Specialty Chemical Pilot Trials: Multi-step batch synthesis where reaction and fractional purification happen in one vessel.
- Vacuum Distillation of Synthesized APIs: Isolating delicate active compounds immediately upon completion of agitation.
