GOEL SCIENTIFIC GLASS WORKS LTD is one of the leading Scientific glass fabricator in the world, who has provided the Glass Industry of India a big leap in the Global Market. We have made presence in all the populated continents and are representing & supplying our product & service worldwide. At present, we have over 1100 satisfied customers across the globe in around 80 countries.

We fabricate glass parts from best raw material from various leading manufactures for itsproduction.On request, we also produce glass pans from Leading European Borosilicate Glass 3.3 tubing supplier which fulfills all major standards of DIN ISO 3585 & ASTM E438 Type I, Class A and thus offering high accuracy & excellent optical propenies which is at par to other leading manufactures across the globe.

Understanding the Glass at it’s best, we forge the Glass with the precise mixture of craftsmanship of Potter, Blacksmith & Goldsmith with a blend of engineering, being “The Transparent Specialist”.

We specialize in design, fabrication, engineering, installation & commissioning of Pilot Plant/Mini-Plant & Standard Distillation Unit for Research & Development. All glass parts are designed, fabricated, tested & installed as per International Norms like ISO 3585, 3586, EN BS 1595, AD 2000 Merkblatt. On request, glass pilot plant parts are available with CE Marking & documentation with added monetary value.

Industrial Glassware Product

Structure and Support

Glass plants are normally supported in a tubularstructure formed of galvanised steel tubes or mild steel with epoxy coated or stainless steel 304 & 316. This type of structure is proved robust and flexible over many years.

Support Of Column

Glass plants and pipeline should be supported correctly. To prevent inducing undesirable stresses in the glass, support should be rigid. When supported, glass should be in compression.

Generally, glass plant and equipment are supported in a rectangular tubular structure. This structure is formed of galvanised mild steel tubing with the cast iron fittings which are described in this catalogue. This type of structure provides enough flexibility for future modifications and is strong enough to support a glass unit.

Following rules should be followed while supporting a glass unit in a tubular
structure :

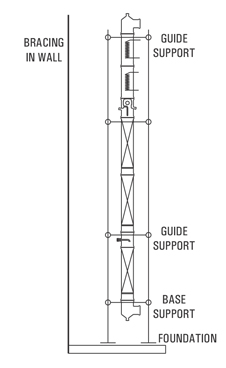

The structure must be rigid. To give lateral support it must be braced back to the nearest wall or any rigid feature.
All glass columns are build up from a fixed point on which whole weight of the column should be taken.
With change in temperature, glass column and tubular structure expands at different rate. Therefore glass unit must be free for vertical movement above the fixed point. Hence, above the fixed point, guides supports should be used to give lateral support.

Structure Tubes, Galvanised

For forming the structure,"B" class galvanised tubes, Mild Steel with Epoxy Coated, Stainless Steel 304 & 316 are used in size of 1/2", 1", 1.1/4", 1.1/2" and 2". Cut tubes are available in required length to form a standard size structure. Cut tubes are provided with rubber plug at both the ends.

TUBE SIZE NB INCHES	NB MM	EXTERNAL DIAMETER
1/2″	15	19.5
1″	25	32.5
1.1/4″	30	41.5
1.1/2″	40	48.3
2″	50	60.3

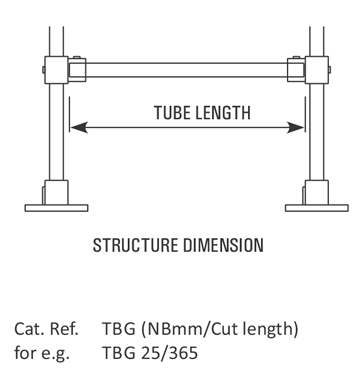

STRUCTURE	NB (MM)
Dimension	15*	25*	30*	40*	50*

Best, Top, supply Glass plants that are supported in a tubular structure formed of galvanized steel tubes Manufacturers, in Canada, the USA Goel Scientific Glass

For Vertical installation

FOR VERTICAL INSTALLATION
2500	-	2500	-	-	-
3000	-	3000	3000	-	-
3500	-	3500	3500	-	-
4000	-	-	4000	-	-
6000	-	6000	6000	6000	6000

For Frames

FOR FRAMES
400	–	365	355	345	335
500	–	465	455	445	435
600	–	565	555	545	535
800	–	765	755	745	735
1000	–	965	955	945	935
1200	–	1165	1155	1145	1135
1500	–	1465	1455	1445	1435

For Support

FOR SUPPORT
400	450	450	450
500	550	550	550
600	650	650	650
800	850	850	850
1000	1050	1050	1050
1200	1250	1250	1250

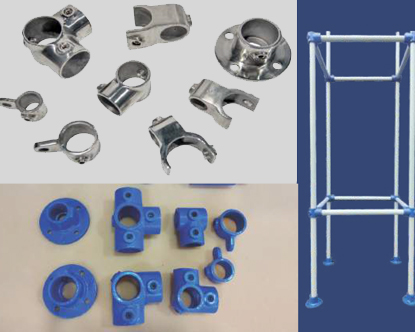

Structure Fittings

Following structure fitting are available to use with galvanised tubes in order to form a tubular structure for a glass plant. These fitting are made of Cast iron. Also available in Stainless Steel 304 & 316 and are suitable to the galvanised tubes described earlier. These slidable fittings are provided with grub screws to fix it at required position on a galvanised tube. These fittings are specially made to construct a tubular structure which provides enough flexibility for future modifications without involving any hammering and welding.

Structure Fittings – General Data

NB	TUBE DIA	ID	OD	d
25	32.5	35	45	1/2″
30	42.5	45	55	1/2″
40	48.3	51	61	1/2″
50	60.3	63	73	1/2″

Structure Fittings – Base

These are to be used with vertical tubes. Holes are provided for foundation.

CAT.REF.	NB	D	H	PCD	DØ
BS25*	25	150	75	110	4 x 14Ø
BS30*	30	150	75	110	4 x 14Ø
BS40	40	150	75	110	4 x 14Ø
BS50	50	175	75	125	4 x 14Ø

Structure Fittings – Coupler

These are generally used to couple the vertical tubes where more length is require.

CAT.REF.	NB	H	H1
CL25	25	150	200
CL30	30	150	200
CL40	40	150	200
CL50	50	150	200

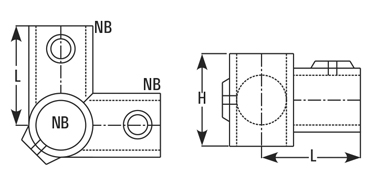

Structure Fittings – Bend

These are used to build frames on vertical tubes.

CAT.REF.	NB	D	H	PCD	DØ
BS25*	25	150	75	110	4 x 14Ø
BS30*	30	150	75	110	4 x 14Ø
BS40	40	150	75	110	4 x 14Ø
BS50	50	175	75	125	4 x 14Ø

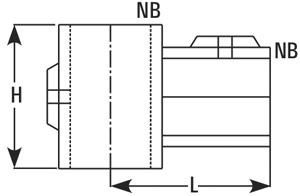

Structure Fittings – Tee

These are used to build frames on vertical tubes.

CAT.REF.	NB	H	L
T25*	25	50	55
T30*	30	65	70
T40	40	70	80
T50	50	85	95

Structure Fittings - Double Bend

CAT.REF.	NB	H	L
DBN25	25	55	55
DBN30	30	65	70
DBN40	40	70	80
DBN50	50	85	95

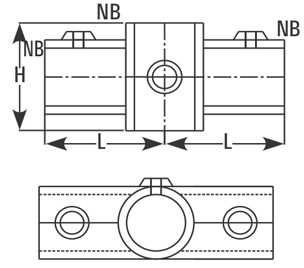

Structure Fittings – Double Tee

CAT.REF.	NB	H	L
DT25	25	50	55
DT30	30	65	70
DT40	40	70	80
DT50	50	85	95

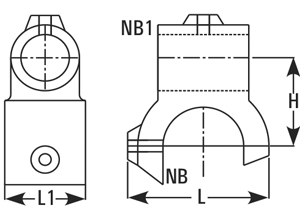

Structure Fittings – Equal Bracket

CAT.REF.	NB	H	L	L1
EBT25*	25	45	65	50
EBT30*	30	55	80	55
EBT40	40	60	85	60
EBT50	50	70	95	60

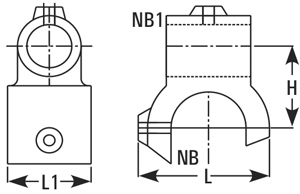

Structure Fittings – Unequal Bracket

CAT.REF.	NB	NB1	H	L	L1
UBT25/15*	25	15	40	65	50
UBT30/15*	30	15	50	75	60
UBT40/25	40	25	55	85	60
UBT50/25	50	25	60	95	65

Structure Fittings – Cross

CAT.REF.	NB	H	L
X25	25	50	45
X30	30	65	55
X40	40	65	70
X50	50	65	85

Structure Fittings – Support

CAT.REF.	NB	H	L	D
SPT15*	15	30	35	13
SPT25*	25	40	50	13
SPT30*	30	45	57	13
SPT40	40	50	62	13
SPT50	50	55	67	13

Structure Fittings – Plugs

These are used to plug the open ends of galvanised tubes.

CAT.REF.	NB
PLUG15*	15
PLUG25*	25
PLUG30*	30
PLUG40	40
PLUG59	50

Structure Fittings – Studs

These are used as screwed rods with supports.

CAT.REF.	D	L
STUD5/16-150*	5/16″	150
STUD3/8-150*	3/8″	150
STUD1/2-200	1/2″	200

Structure Dimensions

For columns

DN	RECOMMENDED TUBE SIZE NB (MM)	MINIMUM STRUCTURE SIZE DEPTH X WIDTH
80	25	500 x 500
100	25	500 x 500
150	25,30	600 x 600
225	30	800 x 800
300	30	800 x 800
400	30	1000×1000
450	30,40	1000×1000
600	40,50	1200×1200

For vessels (IN HEATING MENTLES)

For columns

SIZE (LITRES)	RECOMMENDED TUBE SIZE NB (MM)	MINIMUM STRUCTURE SIZE DEPTH X WIDTH
20	25	400 x 600
50	25	600 x 800
100	25,30	800 x 800
200	30	800 x 1000

For vessels (IN HEATING BATHS)

SIZE (LITERS)	RECOMMENDED TUBE SIZE NB (MM)	MINIMUM STRUCTURE SIZE DEPTH X WIDTH
20	25	500 x 600
50	25	600 x 800
100	25,30	800 x 1000
200	30	800 x 1200

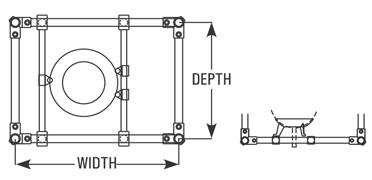

For vessels (IN VESSEL HOLDERS)

SIZE (LITRES)	RECOMMENDED TUBE SIZE NB (MM)	MINIMUM STRUCTURE SIZE DEPTH X WIDTH
20	25	500 x 600
50	25	600 x 800
100	25,30	1000 x 1000
200	30	1000 x 1000

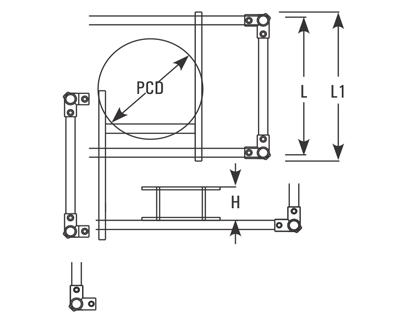

Column Base Support Frames

These channel frames are used as fixed support in erection of columns. These are supplied with full threaded jacking rods and U bolts.

CAT. REF.	PCD	L1	L	H
FCSH225	310	1000	800	75
FCSH300	395	1000	800	75
FCSH400	495	1200	1000	75
FCSH450	585	1200	1000	100
FCSH600	710	1400	1200	100

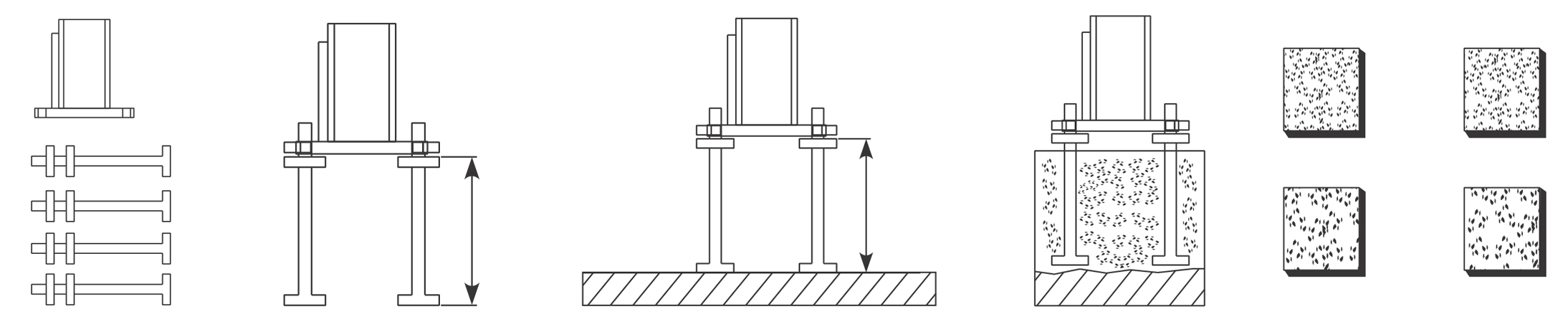

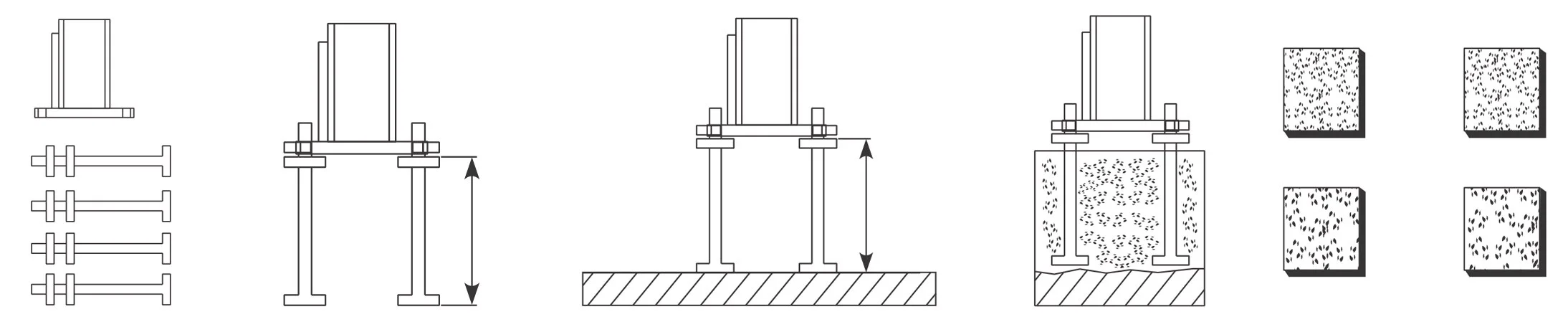

Grouting Of Base

Take one Cast Iron BASE and four foundation Bolts, each with 2 nuts.
Fit the bolts in BASE so That base is raised upto 150mm from head of bolts.
Put this assembly on the floor and prepare a rough surface for proper bonding of grouting.
Make a concrete block over the bolts of about 200 x 200mm upto the base of BASE i.e. 150mm high.
Prepare separate block for each BASE instead of making one big common block. for all BASES.

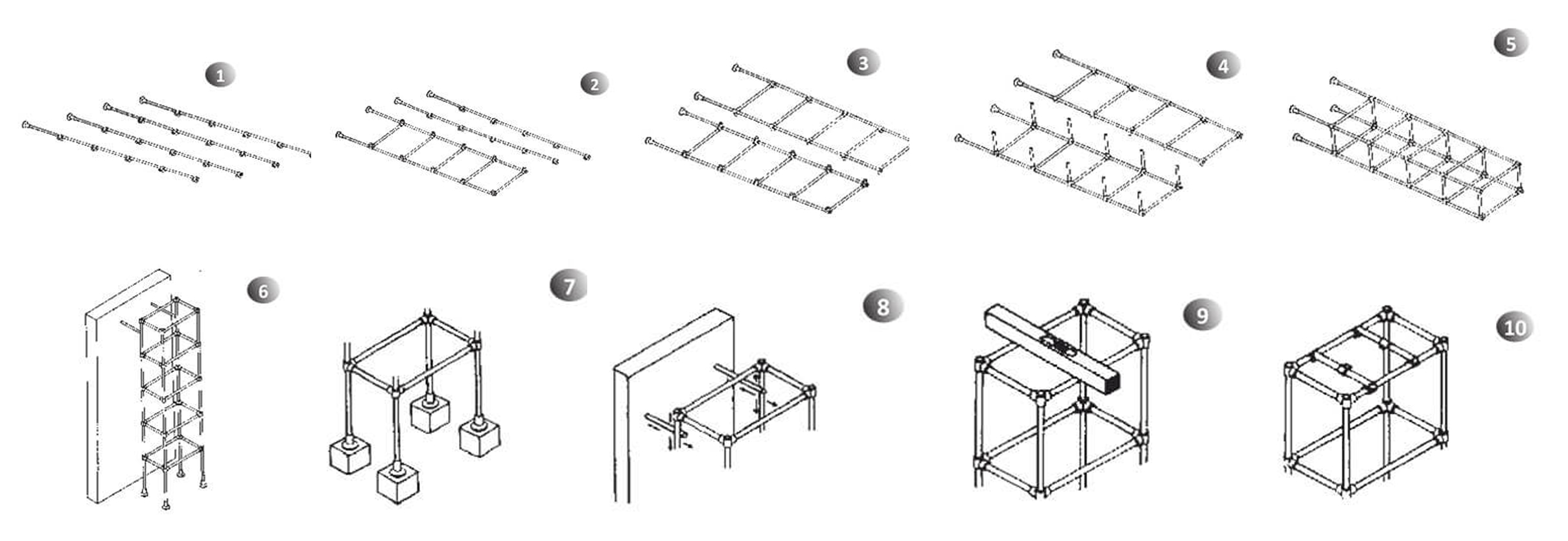

Assembling Of Structure

Mark the position of required fittings on all the vertical tubes, slide them in correct sequence and lightly tighten.
Assemble one side frame of the structure by adding the cross tubes between two vertical tubes.
Assemble other side frame of the structure by adding the cross tubes between other two vertical tubes.
Build up the cross tubes in one side frame and tighten lightly.
Add the other side frame on it and tighten all the fittings firmly.
Hoist the structure and brace it to some existing rigid feature.
Grout the foundation bolts and fix the structure bases with that.
Adjust bracing to obtain a correct plumb in structure.
Adjust the horizontal frames in correct level.
Assemble the support tubes at their positions.
