Spherical Vessels

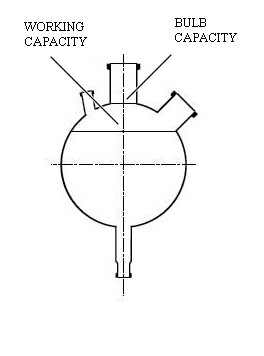

Spherical Vessels – General Data

NOMINAL CAPACITY (LTRS.) MAXIMUM PRESSURE (BAR)
5 1
10 0.8
20 0.7
50 0.5
100 0.4
200 0.3
300 0.2
500 0.1
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA
Nominal Capacity(Ltrs.) L D DN T DN1 B DN2 P DN3 S
5 425 225 50 75 25 125 25 50 40 75
10 575 285 80 90 25 200 25 50 40 75
20 650 350 100 100 25 200 25 50 40 75
50 840 490 100 100 40 200 40 75 100 100
50A 840 490 150 150 40 200 40 75 100 100
100 950 600 150 150 40 200 40 75 100 100
100A 950 600 225 150 40 200 40 75 100 100
200 1200 750 225 225 40 200 40 75 100 100
200A 1200 750 300 250 40 200 40 75 100 100
300 1310 860 300 300 50 200 50 75 100 100
300A 1310 860 400 300 50 200 50 75 100 100
500 1450 1000 450 250 50 200 50 75 150 165
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA

Single Neck Spherical Vessel

CAT.REF. NOMINAL CAPACITY L DN
VSA5 5 L 300 50
VSA10 10 L 375 80
VSA20 20 L 450 100
VSA50 50 L 640 100
VSA50A 50 L 640 150
VSA100 100 L 750 150
VSA100A 100 L 750 225
VSA200 200 L 1000 225
VSA200A 200 L 1000 300
VSA300 300 L 1110 300
VSA300A 300 L 1110 400
VSA500 500 L 1250 450
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA

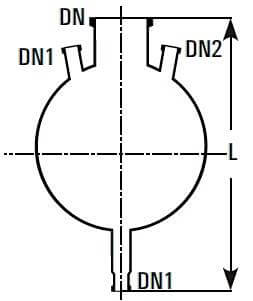

Three Neck Bottom Outlet Spherical Vessels

CAT.REF. NOMINAL CAPACITY L DN DN1 DN2
VSM50* 50 L 840 100 40 40
VSM50A 50 L 840 150 40 40
VSM100 100 L 950 150 40 40
VSM100A 100 L 950 225 40 40
VSM200 200 L 1200 225 40 40
VSM200A 200 L 1200 300 50 50
VSM300 300 L 1310 300 50 50
VSM300A 300 L 1310 400 50 50
VSM500 500 L 1450 450 50 50
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA

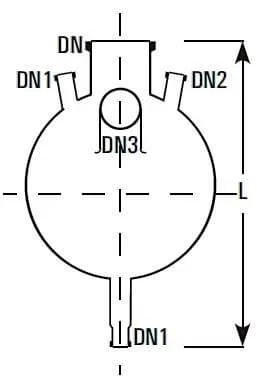

Four Neck Bottom Outlet Spherical Vessels

CAT.REF. NOMINAL CAPACITY L DN DN1 DN2 DN3
VSPL5 5 L 425 50 25 25 40
VSPL10 10 L 575 80 25 25 40
VSPL20 20 L 650 100 25 25 40
VSPL50 50 L 840 100 40 40 100
VSPL50A 50 L 840 150 40 40 100
VSPL100 100 L 950 150 40 40 100
VSPL100A 100 L 950 225 40 40 100
VSPL200 200 L 1200 225 40 40 100
VSPL200A 200 L 1200 300 40 40 100
VSPL300 300 L 1310 300 50 50 100
VSPL300 300 L 1310 400 50 50 100
VSPL500 500 L 1450 450 50 50 150
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA

Five Neck Bottom Outlet Spherical Vessel

CAT.REF. NOMINAL CAPACITY L DN DN1 DN2 DN3
VSL5 5 L 425 50 25 25 40
VSL10 10 L 575 80 25 25 40
VSL20 20 L 650 100 25 25 40
VSL50* 50 L 840 100 40 40 100
VSL50A 50 L 840 150 40 40 100
VSL100* 100 L 950 150 40 40 100
VSL100A 100 L 950 225 40 40 100
VSL200* 200 L 1200 225 40 40 100
VSL200A 200 L 1200 300 50 50 100
VSL300 300 L 1310 300 50 50 100
VSL300A 300 L 1310 400 50 50 100
VSL500 500 L 1450 450 50 50 150
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA

Five Neck Bottom Outlet Spherical Vessel

CAT.REF. NOMINAL CAPACITY L DN DN1 DN2 DN3
VS 5 5 L 425 50 25 25 40
VS 10 10 L 575 80 25 25 40
VS 20 20 L 650 100 25 25 40
VS 50* 50 L 840 100 40 40 100
VS 50A 50 L 840 150 40 40 100
VS 100* 100 L 950 150 40 40 100
VS 100A 100 L 950 225 40 40 100
VS 200* 200 L 1200 225 40 40 100
VS 200A 200 L 1200 300 40 40 100
VS 300 300 L 1310 300 50 50 100
VS 300A 300 L 1310 400 50 50 100
VS 500 500 L 1450 450 50 50 150
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA

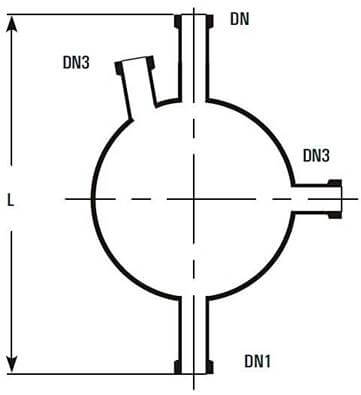

Spherical Vessels With Nozzle At 90°

These vessels are used in Circulatory Boiler System and are to be supported on a vessel holder. More nozzles can be provided on the equator on request for special requirements.

CAT.REF. NOMINAL CAPACITY L DN DN1 DN2 DN3
VSD5 5 L 425 50 25 25 40
VSD10 10 L 500 80 25 25 40
VSD20 20 L 575 100 25 25 40
VSD50 50 L 765 100 40 40 100
VSD50A 50 L 765 150 40 40 100
VSD100 100 L 875 150 40 40 100
VSD100A 100 L 875 225 40 40 100
VSD200 200 L 1125 225 40 40 100
VSD200A 200 L 1125 300 40 40 100
VSD300 300 L 1235 300 50 50 100
VSD300A 300 L 1235 400 50 50 100
VSD500 500 L 1375 450 50 50 150
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA

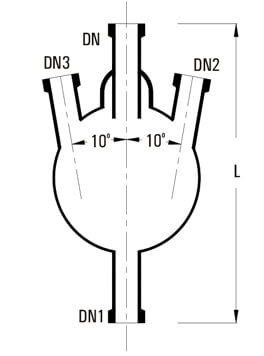

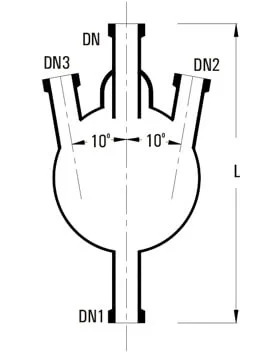

Spherical Receivers

Receivers are provided with builtin drip pipe. These are to be supported on a vessel holding ring.

CAT.REF. NOMINAL CAPACITY L DN DN1 DN2 (100) DN3 (100)
VR5* 5 L 350 25 25 25
VR10* 10 L 425 25 25 25
VR20* 20 L 500 25 25 25
VR50 50 L 675 40 25 25
VRB5* 5 L 350 25 25 25 25
VRB10* 10 L 425 25 25 25 25
VRB20* 20 L 500 25 25 25 25
VRB50 50 L 675 40 25 25 25
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA

Addition Vessels

These vessels are provided with a short bottom outlet. These should be supported on a vessel holder/ holding ring.

CAT.REF. NOMINAL CAPACITY L DN DN1
VA5 5 L 375 50 25
VA10 10 L 450 80 25
VA20 20 L 525 100 25
VA50 50 L 715 100 40
VA50A 50 L 715 150 40
VA100 100 L 875 150 40
VA100A 100 L 875 225 40
VA200 200 L 1125 225 40
VA200A 200 L 1125 300 40
VA300 300 L 1235 300 50
VA300A 300 L 1235 400 50
VA500 500 L 1375 450 50
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA

Spherical Vessels With Wide Bottom Outlet

These vessels are generally used to fit immersion exchangers in the bottom. Special heating mantle or bath should be used if used with.

CAT.REF. NOMINAL CAPACITY L DN DN1 DN2 DN3
VSR50 50 L 790 100 150 40 100
VSR50A 50 L 790 150 150 40 100
VSR100 100 L 900 150 150 40 100
VSR100A 100 L 900 225 150 40 100
VSR200 200 L 1150 225 150 40 100
VSR200A 200 L 1150 300 150 40 100
VSE50 50 L 840 100 100 40 100
VSE50A 50 L 840 150 150 40 100
VSE100 100 L 950 150 150 40 100
VSE100A 100 L 950 225 225 40 100
VSE200 200 L 1200 225 225 40 100
VSE200A 200 L 1200 300 300 40 100
Best, Top, We serve the, Spherical Vessels, Boiling Flask Good Quality Spherical Vessels Manufacturer, Supplier, Canada, USA in North America, Goel Scientific Glass Canada USA

Vessels With Bottom Outlet Valve Seat

To fit a bottom outlet valve (BAL type) all spherical and cylindrical vessels can be supplied with valve seat in bottom outlet. For this, Add a suffix "/B" to the catalogue reference of a vessel, for e.g. 'VSL50' should be mentioned as 'VSL50/B'.

Notes on use of Spherical vessels :

  • Generally, the centre nozzle, referred as DN in all types of vessels, is used for either stirrer fixing or, if stirrer is not fixed, for vapour outlet.
  • The bottom outlet, referred as DN1 in all types, is used for drain. However, in type VSR & VSE, it is also used for fixing immersion heat exchanger.
  • The small side nozzles, referred as DN2 in all types, are used (a) to fix thermometer pocket or
    1. to fix thermometer pocket or,
    2. to fix dip pipe for liquid inlet or,
    3. to fix sparger for gas purging or,
    4. to fix vacuum control or vent valve or,
    5. for solid addition.
  • The bigger side nozzle, referred as Dn3, is used for vapour outlet where stirrer is fixed on centre neck. It can also be used for cleaning in case centre neck is used for vapour outlet.
  • Vessels having long bottom outlet, viz VSM, VSPL, VSL, VS etc, can be supported in a heating mantle of heating bath. However, vessels having short bottom outlet, viz VSD, VSCY, VR, VA etc. are to be supported on a vessel holder only. In case of vessels upto 20L size, vessel holding rings can be used instead of vessel holder. *marked items are available fast.
